KTY81-121 type silicon temperature sensor readout using the ESP32 ADC in its high-linearity region. More...
#include <sensor_kty81_1xx.hpp>
Inheritance diagram for SensorKTY81_121:

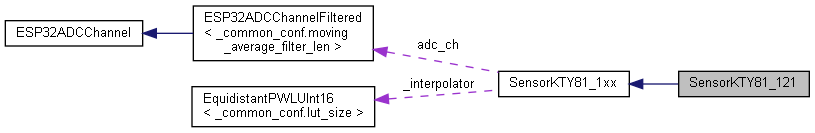

Collaboration diagram for SensorKTY81_121:
Public Member Functions | |
| SensorKTY81_121 (adc1_channel_t channel) | |
 Public Member Functions inherited from SensorKTY81_1xx | |
| SensorKTY81_1xx (adc1_channel_t channel, EquidistantPWLUInt16< _common_conf.lut_size > *interpolator) | |
| Initialize the analog ADC channel for use with the sensor. More... | |
| void | update_filter () |
| Updates the moving average with a new sampled value from ADC. More... | |
| float | get_temp_pwl () |
| Excellent precision temperature sensing using piecewise linear interpolation of Look-Up-Table values for a KTY81-121 type sensor. Use this if temperatures above 100°C ore below 0°C are to be measured. More... | |
| float | get_temp_lin () |
| Fairly precise temperature conversion if the temperature sensor voltage has good linearisation. Worst results at temperature extremes. More... | |
Additional Inherited Members | |
| Public Attributes inherited from SensorKTY81_1xx | |
| ESP32ADCChannelFiltered< _common_conf.moving_average_filter_len > | adc_ch |
| Static Public Attributes inherited from SensorKTY81_1xx | |
| static constexpr auto | _common_conf = KTY81_1xxCommonConfig{} |
| Protected Attributes inherited from SensorKTY81_1xx | |
| EquidistantPWLUInt16< _common_conf.lut_size > * | _interpolator |
Detailed Description
KTY81-121 type silicon temperature sensor readout using the ESP32 ADC in its high-linearity region.
Usage and details: See base class description KTY81_1xx.
The documentation for this class was generated from the following file:
- main/include/sensor_kty81_1xx.hpp
