Application state containing data and settings model. More...

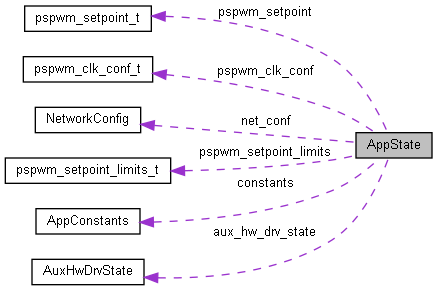

Collaboration diagram for AppState:

[legend]

Public Member Functions
size_t	serialize_full_state (char *buf, size_t buf_len)
	Serialize application runtime state and configurable settings into buffer as a JSON string.

bool	deserialize_settings (const char *buf, size_t buf_len)
	Restore application runtime configurable settings from json string in buffer back into this instance.

bool	save_to_file (const char *filename)
	Write application runtime configurable settings to SPIFFs file as a JSON string.

bool	restore_from_file (const char *filename)
	Restore application runtime configurable settings from SPIFFs file back into this instance.

Public Attributes
NetworkConfig	net_conf {}

AuxHwDrvState *	aux_hw_drv_state = nullptr

bool	setpoint_throttling_enabled = true

pspwm_clk_conf_t *	pspwm_clk_conf = nullptr

pspwm_setpoint_t *	pspwm_setpoint = nullptr

pspwm_setpoint_limits_t *	pspwm_setpoint_limits = nullptr

float	frequency_min = constants.frequency_min

float	frequency_max = constants.frequency_max

float	frequency_target = 100.0e3f

float	frequency_increment = 500.0f

float	duty_min = 0.0f

float	duty_max = 0.8f

float	duty_target = 0.0f

float	duty_increment = 0.05f

bool	hw_oc_fault_present = true

bool	hw_oc_fault_occurred = true

uint32_t	oneshot_power_pulse_length_ms = 1

Static Public Attributes
static constexpr size_t	_key_strings_size

static constexpr size_t	_json_objects_size = JSON_OBJECT_SIZE(31)

static constexpr size_t	I_AM_SCARED_MARGIN = 50

static constexpr size_t	json_buf_len

static constexpr AppConstants	constants {}

Detailed Description

Application state containing data and settings model.

Live data is kept here and and can be serialised to be sent to the connected remote clients.

Runtime user configurable settings can be serialised and stored to file or read back from file and restored into this instance.

Member Data Documentation

constexpr size_t AppState::json_buf_len

staticconstexpr

Initial value:

= _json_objects_size
                                            + _key_strings_size
                                            + I_AM_SCARED_MARGIN

The documentation for this struct was generated from the following files:
