AuxHwDrv Class Reference

Auxiliary hardware driver for ESP-AJAX-Lab This implements GPIO control for relays, fan, enable and reset signals and PWM generation used as a reference signal for hardware overcurrent limiter. More...

#include <aux_hw_drv.hpp>

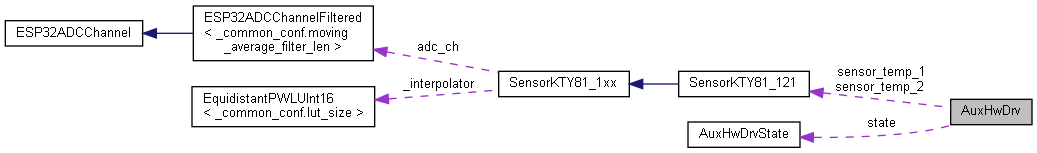

Collaboration diagram for AuxHwDrv:

Public Member Functions
void	set_current_limit (float value)
void	set_relay_ref_active (bool state)
void	set_relay_dut_active (bool state)
void	set_fan_active (bool state)
void	set_fan_override (bool new_state)
void	set_drv_supply_active (bool state)
void	set_drv_disabled (bool state)
void	update_temperature_sensors ()
	Only updates the state structure for temperature sensors. Other state variables are only modified by setter functions above.
void	evaluate_temperature_sensors ()
	Check if temperature exceeds threshold value and switch fan accordingly. More...

Static Public Member Functions
static void	reset_oc_shutdown_start ()
static void	reset_oc_shutdown_finish ()

Public Attributes
AuxHwDrvState	state
SensorKTY81_121	sensor_temp_1 {aux_hw_conf.temp_ch_1}
SensorKTY81_121	sensor_temp_2 {aux_hw_conf.temp_ch_2}

Static Public Attributes
static constexpr auto	aux_hw_conf = AuxHwDrvConfig{}

Detailed Description

Auxiliary hardware driver for ESP-AJAX-Lab This implements GPIO control for relays, fan, enable and reset signals and PWM generation used as a reference signal for hardware overcurrent limiter.

Further, temperature sensor readout is triggered here by calling update_temperature_sensors() member peroiodically from timer task in PsPWMAppHwControl::on_periodic_update_timer().

This class is also used as a container for its public attribute members which represent the hardware state and are read-accessed externally.

Member Function Documentation

evaluate_temperature_sensors()

void AuxHwDrv::evaluate_temperature_sensors

(

)

Check if temperature exceeds threshold value and switch fan accordingly.

To be called periodically from slow timer event

---

The documentation for this class was generated from the following files:

• main/include/aux_hw_drv.hpp
• main/aux_hw_drv.cpp
